R66 Turbine & R66 Turbine Marine

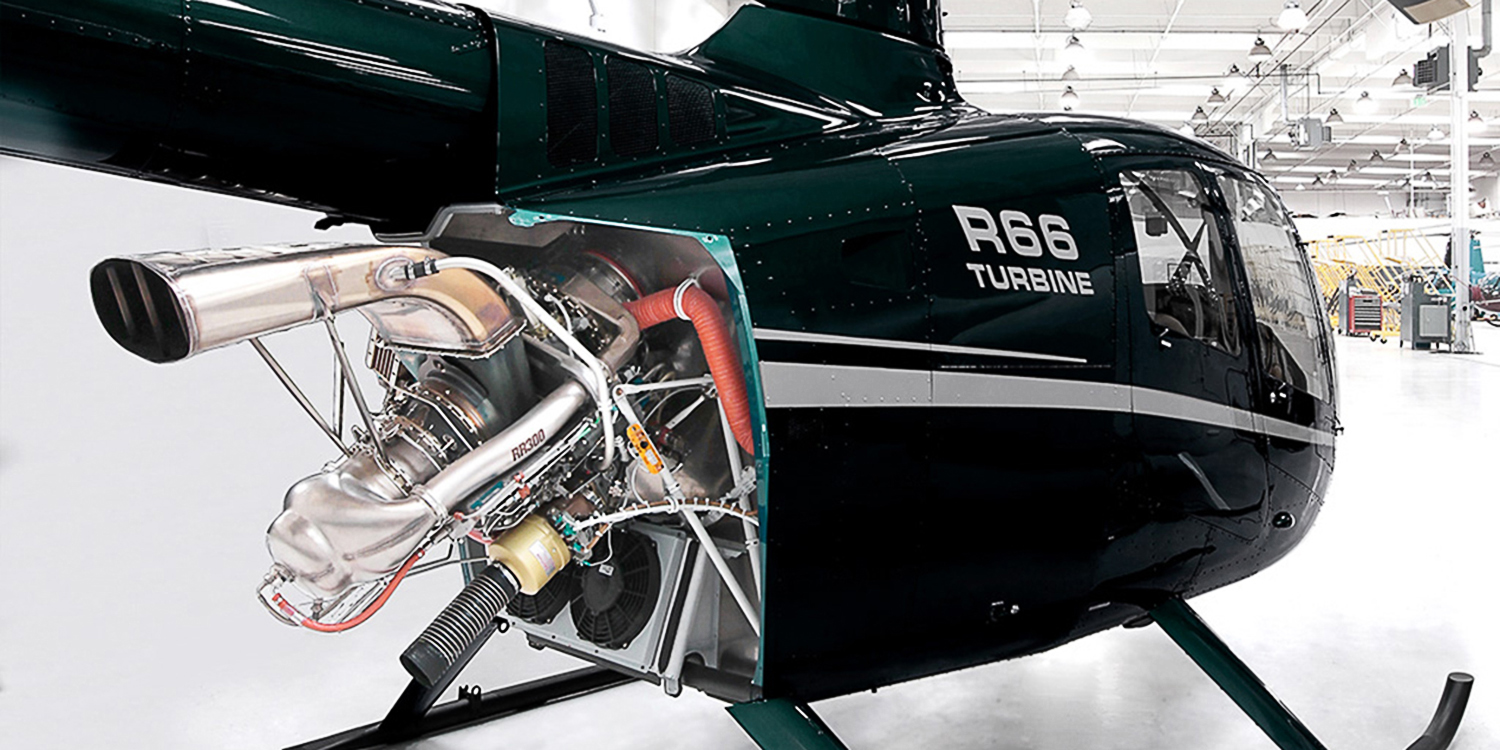

The five-seat R66 Turbine helicopter is reliable, economical and easy to maintain. R66s have a two-bladed rotor system, T-bar cyclic and the latest in Robinson technology including streamlined instrument panels, energy absorbing seats and crashworthy bladder fuel tanks. What distinguishes the R66 is a spacious 300 lb capacity baggage compartment and the Rolls Royce RR300 turboshaft engine. The RR300 engine operates on readily available Jet A fuel and offers increased reserve power, additional payload and improved altitude performance. Hydraulic controls eliminate feedback forces and provide responsive handling.
Outfitted with pop-out floats, the R66 Turbine Marine offers an additional level of safety for over-water travel. Designed for emergencies, the six-chamber floats inflate within 2-3 seconds of activation. The installation adds approximately 65 pounds to the helicopter’s empty weight. When not in use, floats roll-up and stow in protective covers along the aircraft’s landing skids. The streamlined, low profile design minimizes drag and allows for easy entry and exit of the cabin.
With continued focus on safety, the R66 meets the latest FAA crashworthiness regulations.

Equipment & Accessories

  • Hydraulically boosted controls
  • Crashworthy fuel system with bladder tank
  • Cabin heater and defogger
  • Removable dual controls – Detail
  • Rotor brake
  • External power receptacle – Detail
  • Eight-hole instrument panel
  • Intercom switches at each seat – Detail
  • Avionics master switch – Detail
  • Mono and stereo headset jacks (U174 and 6-pin LEMO)
  • Leather seats – Detail
  • Door opener, gas spring, all four doors
  • Tinted windshield and door windows – Detail
  • Three-point shoulder harnesses – Detail
  • Adjustable pedals on pilot’s side – Detail
  • Carpeting and acoustic interior

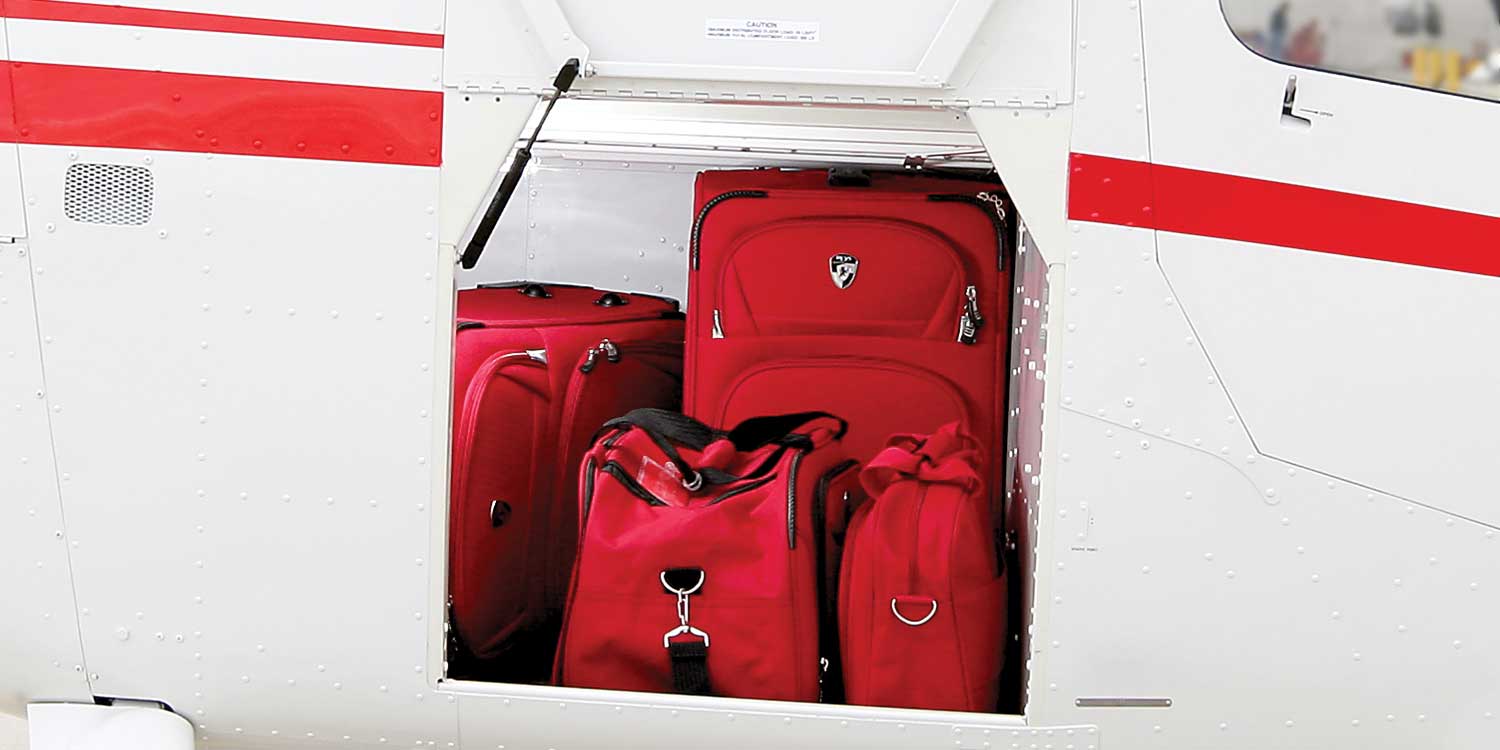

  • Lighted baggage compartment
  • Under-seat storage compartments
  • Door locks – Detail
  • Hard point on belly
  • Engine oil filter
  • Engine air filter
  • Main gearbox oil filter
  • 160 Amp starter/generator
  • Electronic Engine Monitoring Unit for maintenance and engine health tracking
  • Engine anti-ice system
  • Engine compressor rinse nozzle
  • 24 Volt, 25 Amp Hour battery – Detail

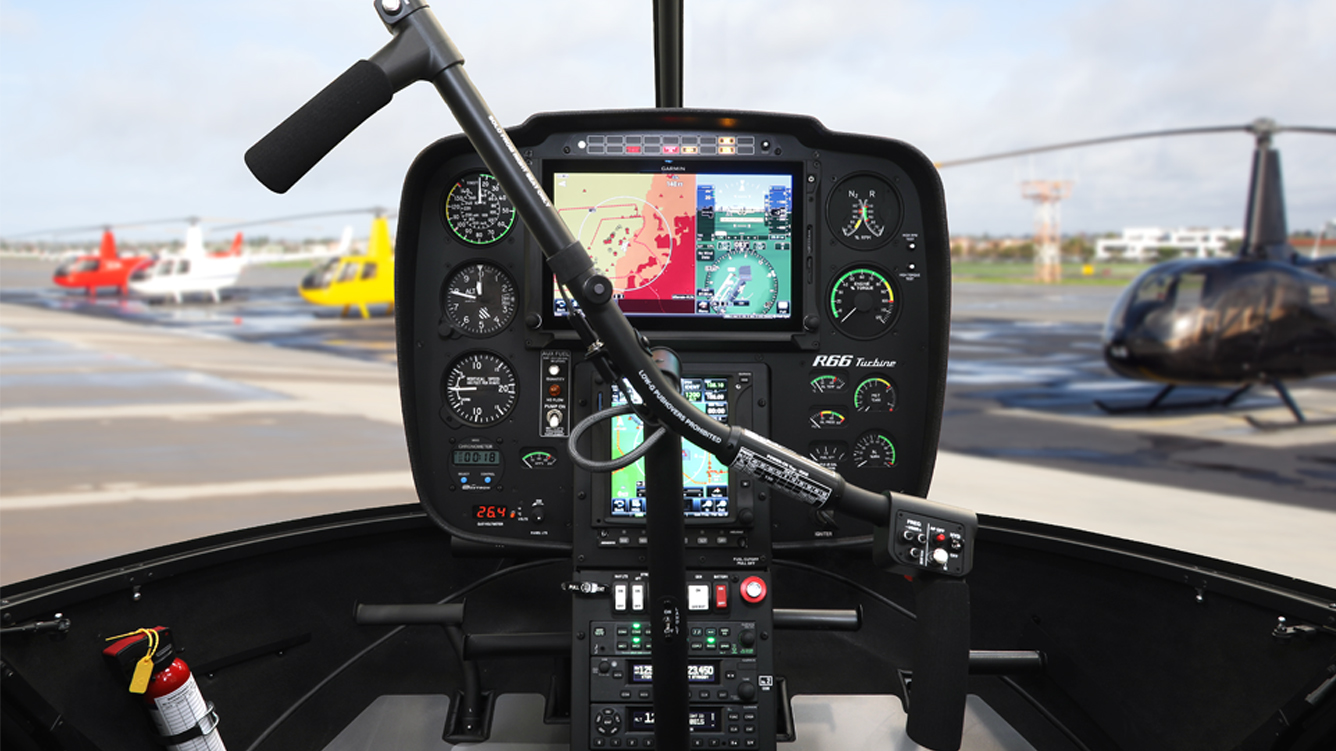

  • Annunciator light panel
  • Rotor brake engaged light
  • Dual HID landing lights – Detail
  • Panel, map, and courtesy lights
  • LED anti-collision light and navigation lights
  • Tow cart adapter
  • Ground handling wheels – Detail
  • Windshield cover
  • Custom fabric travel bag – Detail
  • Rotor blade tie-downs – Detail

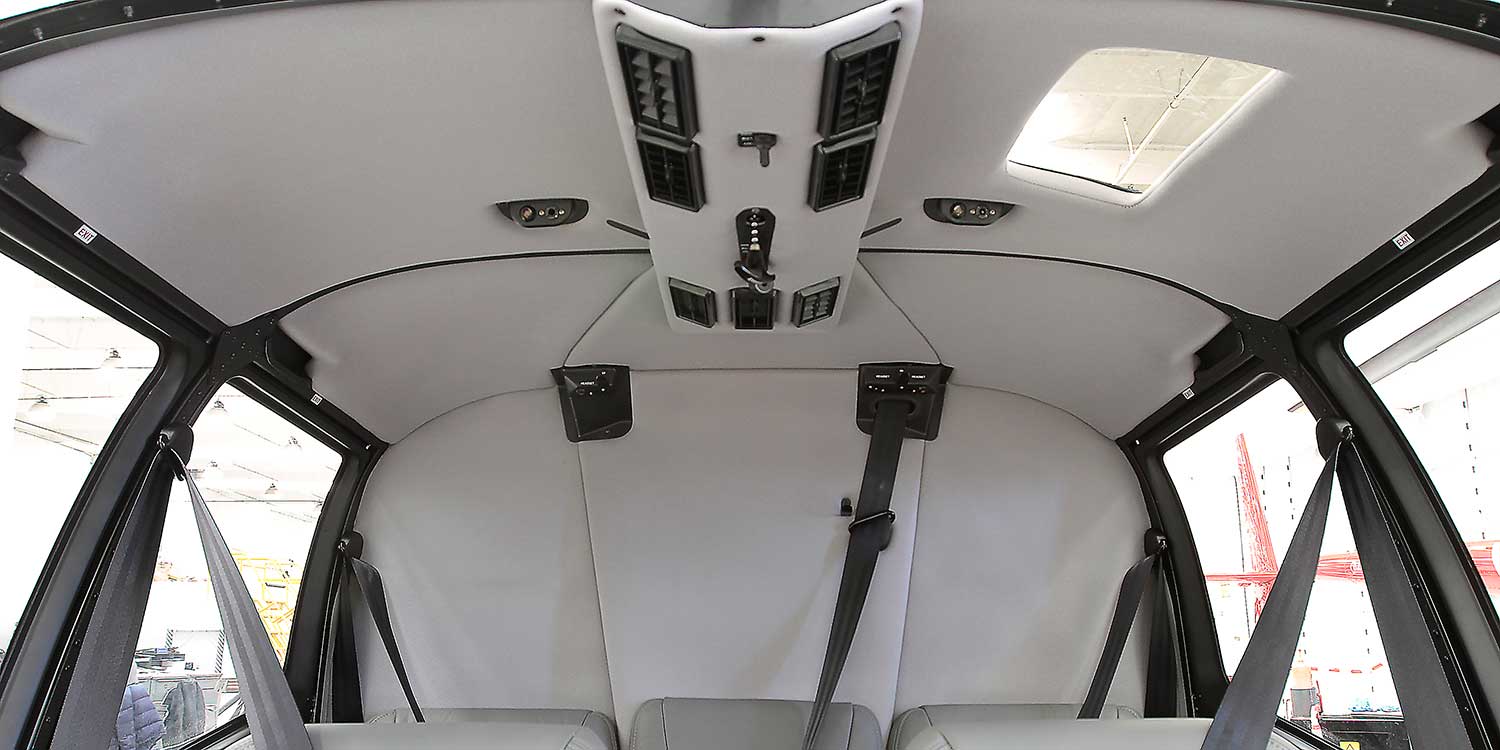

  • Air conditioning – Detail

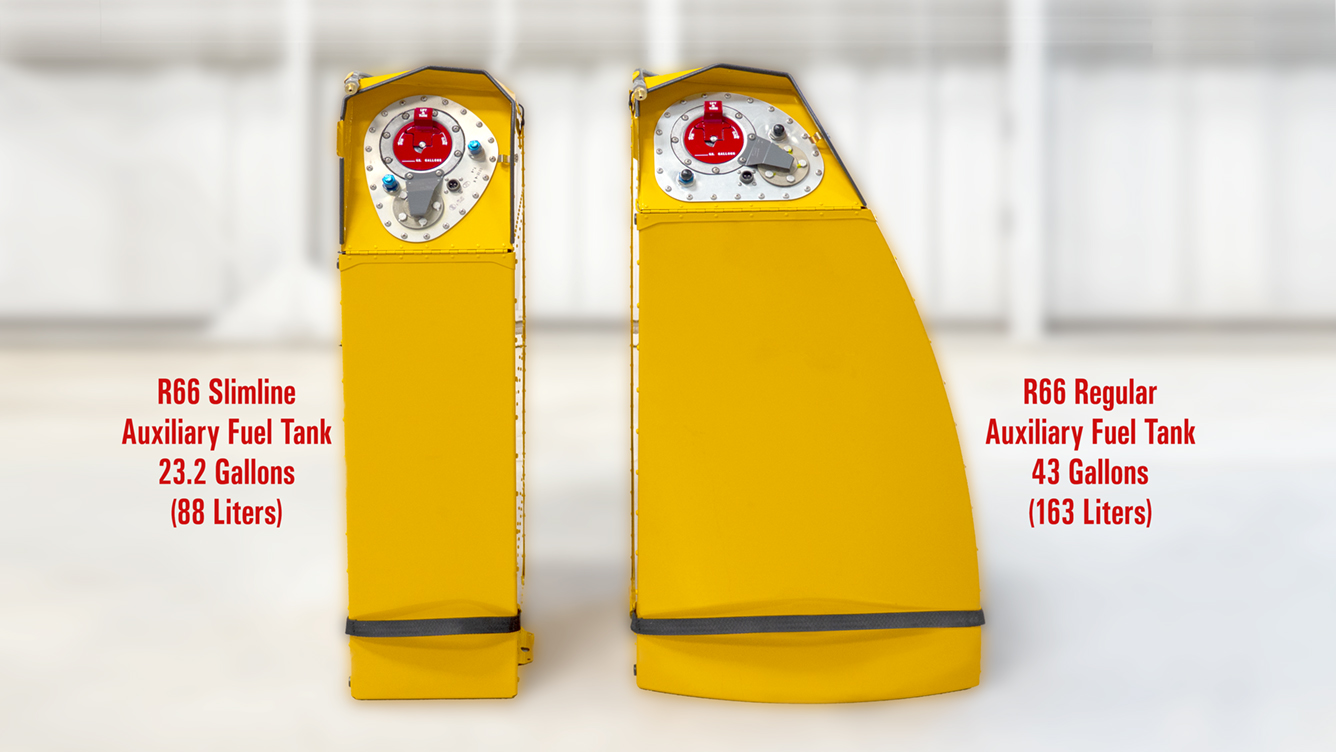

  • Auxiliary Fuel Tanks – Detail
  • Shadin Fuel Flow Meter – Detail
  • Heated seats (center rear not included) – Detail
  • TB-17 Lithium Ion battery – Detail
  • Impact-resistant windshields –  Detail
  • Engine Inlet Barrier Filter – Detail
  • Wire Strike Protection Kit Provisions –  Detail
  • Rear center console – Detail
  • Heated pitot tube – Detail
  • Extra corrosion protection
  • Five-point shoulder harness system –  Detail
  • Red LED forward strobe
  • White LED forward strobe – Detail
  • Cargo Hook – Detail
  • Cargo hook, forward bubble doors –  Detail
  • Cargo hook, utility non-slip seating surface (forward seats)
  • Cargo hook, mirrors – Detail
  • Baggage compartment carpet (charcoal) – Detail
  • Forward ground support – Detail
  • GPS Fleet Tracking Spidertracks S6 – Detail
  • David Clark H10-13H (custom cord) – Detail
  • Bose A20 headset with Bluetooth – Detail
  • 6-pin jack for Bose headset (headset not included) – Detail
  • Aft seat dual USB charge ports – Detail
  • Accessories support bar with power plug and dual USB ports (pilot side)* – Detail
  • Accessories support bar with power plug and dual USB ports (left side)* – Detail
  • Garmin Flightstream 510 card (exchange for standard database card) – Detail
  • Copilot Extended Pedals – Detail
  • Access Steps – Detail
  • Leather seat back booster cushion – Detail
  • Velour seat back booster cushion – Detail
  • Fire extinguisher (fly away delivery only) – Detail
  • Bracket for fire extinguisher – Detail
  • MT950-2 universal tow cart – Detail
  • MT950-3 universal tow cart rear lift kit (required for Clippers with utility floats, Newscopters, and Police Helicopters) – Detail
  • MT570-1 blade tie-down installation tool – Detail
  • Forward cabin cover including all windows (replaces windshield cover)

Instruments

  • Airspeed indicator – Detail
  • Altimeter – Detail
  • Rotor/engine dual tachometer – Detail
  • Vertical speed indicator – Detail
  • Magnetic compass – Detail
  • Torque meter – Detail
  • Gage panel (mean gas temp., oil temp. & pressure, N1 tach, fuel quantity) – Detail
  • Ammeter – Detail
  • Digital OAT gage/voltmeter – Detail
  • Hourmeter, collective activated – Detail
  • Second hourmeter, oil-pressure-activated – Detail
  • Quartz clock – Detail
  • Garmin GDU 700L TXi PFD/MFD – Detail
  • Garmin GDU 1060 TXi PFD/MFD – Detail
  • Helicopter Synthetic Vision Technology Card – Detail
  • Chart View Enablement Cards (G500H and GTN650/750) – Detail
  • Metric PFD Enablement
  • SAS/Autopilot Genesys HeliSAS requires Garmin GDU or Aspen PFD – Detail
  • PFD, Aspen Avionics EFD1000H Pilot (with slaved D.G.) – Detail
  • PFD, Aspen Avionics EFD1000H Pro with HSI (requires GPS) – Detail
  • Garmin GI-106B CDI – Detail
  • Artificial Horizon, LCD, Kelly Mfg RCA2600-3 with Slip Skid – Detail
  • Artificial Horizon, LCD, Kelly Mfg RCA2600-3 with Slip Skid, windshield mount – Detail
  • Artificial Horizon, Mid-Continent 4300 with Slip Skid (mechanical gyro) – Detail
  • Directional Gyro, Mid-Continent 3300 (mechanical gyro) – Detail
  • Turn Coordinator, Mid-Continent (mechanical gyro) – Detail
  • Vertical Compass, PAI-700 (replaces standard compass) – Detail
  • Digital Chronometer, Davtron 800 (replaces standard clock) – Detail
  • Millibar Altimeter (replaces standard in-Hg) – Detail
  • Meter Altimeter (replaces standard in-Hg) – Detail
  • IVSI- Instantaneous Vertical Speed Indicator (replaces standard VSI) – Detail

Specifications & Dimensions

Helicopter R66 Turbine R66 Turbine Marine with Pop-Out Floats
Engine Rolls Royce RR300 Turbine Rolls Royce RR300 Turbine
Horsepower 300 shp turboshaft; derated to 270 shp for takeoff and 224 shp continuous 300 shp turboshaft; derated to 270 shp for takeoff and 224 shp continuous
Maximum Gross Weight 2700 lb (1225 kg) 2700 lb (1225 kg)
Approximate Empty Weight (including oil & standard avionics) 1280 lb (581 kg) 1345 lb (610 kg)
Fuel Capacity (73.6 gal) 493 lb (224 kg) 493 lb (224 kg)
Pilot, Passengers, and Baggage (with maximum fuel) 927 lb (420 kg) 862 lb (391 kg)
Cruise Speed at Maximum Gross Weight up to 110 kts (204 km/h) up to 110 kts (204 km/h)
Maximum Range (no reserve) approximately 350 nm (650 km) approximately 350 nm (650 km)
Hover Ceiling IGE at Maximum Gross Weight over 10,000 ft over 10,000 ft
Hover Ceiling OGE at Maximum Gross Weight over 10,000 ft over 10,000 ft
Rate of Climb over 1000 fpm over 1000 fpm
Maximum Operating Altitude 14,000 ft 14,000 ft
Electrical System 28 volt 28 volt
