R44 Raven I & Clipper I
Four-seat R44 Raven I and Clipper I helicopters are high performing, reliable and easy to maintain. R44s have a two-bladed rotor system, T-bar cyclic and the latest in Robinson technology including streamlined instrument panels and crashworthy bladder fuel tanks.
The R44’s aerodynamic fuselage optimizes airspeed and fuel economy. Hydraulic controls eliminate feedback forces and provide responsive handling. A low tail-rotor tip speed, newly designed muffler and large cambered tail reduce flyover noise.
Raven I and Clipper I helicopters are powered by Lycoming’s O-540 carbureted engine with carburetor heat assist that automatically adjusts carburetor heat enhancing safety and reducing pilot workload.
Equipment & Accessories
- Hydraulically boosted controls
- Crashworthy fuel system with bladder tanks
- Cabin heater and defogger
- Removable dual controls – Details
- Rotor brake
- RPM governor
- Carbon monoxide detector
- Throttle correlator
- Engine overspeed protection during starting
- Electronic Engine Monitoring Unit for maintenance and engine health tracking – Detail
- RHC engine oil filter installation
- Engine oil quick-drain
- Carb Heat Assist

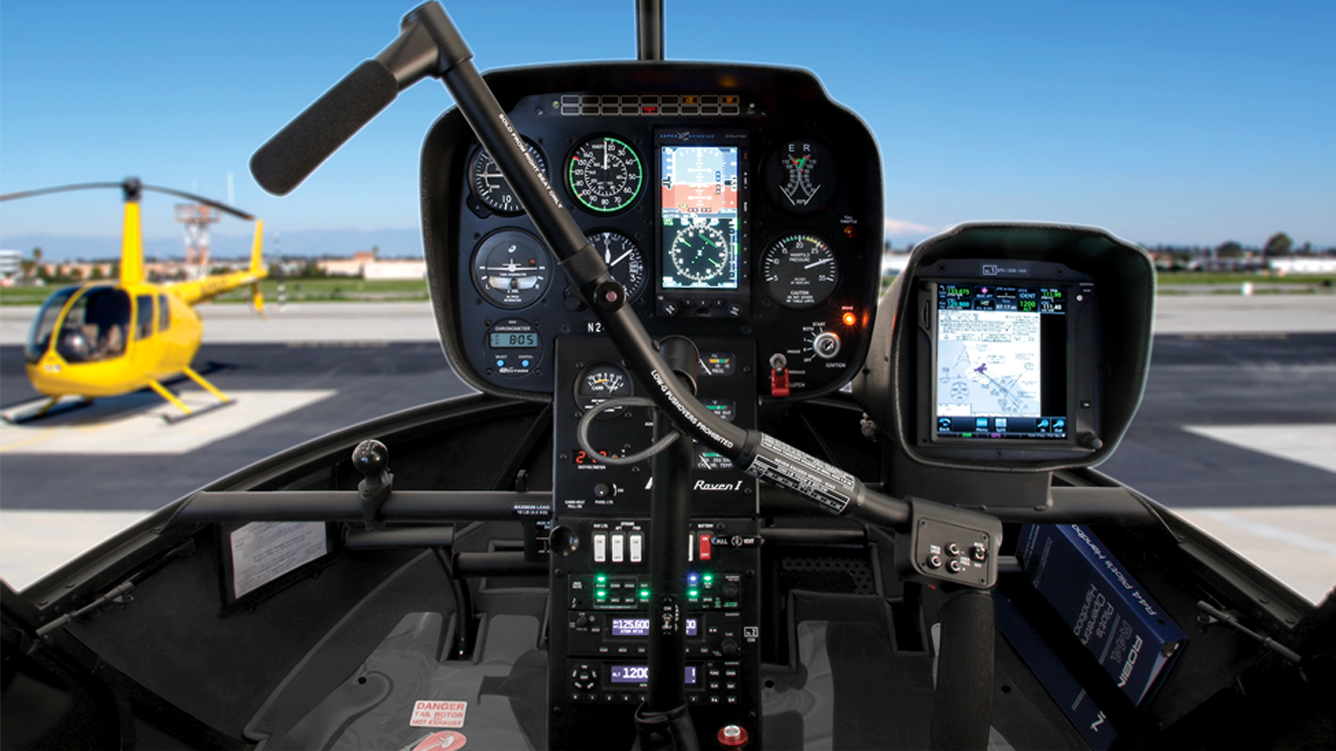

- Six-hole instrumental panel
- Intercom system with VOX and music input
- Intercom switches at each seat – Detail
- Avionics master switch
- Mono and stereo headset jacks (U174 and 6-pin LEMO)
- Fabric velour seats – Detail
- Door opener, gas spring, all four doors
- Tinted windshield and door windows – Detail
- Three-point shoulder harnesses – Detail
- Adjustable pedals on pilot’s side
- Carpeting and acoustic interior
- Muffler and soundproofing
- Under-seat storage compartments – Detail
- Door locks – Detail
- Hard point on belly
- Annunciator light panel
- Rotor brake engaged light
- Full throttle caution light
- Dual HID landing lights
- Panel, map and courtesy lights
- LED anti-collision and navigation lights
- Tow cart adapter
- Ground handling wheels – Detail
- Windshield cover
- Custom fabric travel bag – Detail
- Rotor blade tie-downs – Details
- Eight-hole instrument panel
- Leather seats – Detail
- Engine priming system
- Observation bubble window (each door) – Detail
- Impact-Resistant Windshields – Detail
- Heated pitot tube – Details
- Metallized upper sheave (replaces standard sheave) – Detail
- Extra corrosion protection (included on Clipper)
- Five-point shoulder harness system (front seats) – Detail
- Red LED forward strobe
- White LED forward strobe
- External power receptacle – Detail
- Second hourmeter, oil-pressure-activated – Detail
- GPS Fleet Tracking Spidertracks S6 – Detail
- David Clark H10-13H (custom cord) – Detail
- Bose A20 headset with Bluetooth – Detail
- 6-pin jack for Bose headset (headset not included) – Detail
- Aft seat dual USB charge ports – Detail
- Accessories support bar with power plug and dual USB ports (pilot side) – Detail
- Accessories support bar with power plug and dual USB ports (left side) – Detail
- Garmin Flightstream 510 card (exchange for standard database card) – Detail
- Copilot Extended Pedals – Details
- Leather seat back booster cushion – Detail
- Velour seat back booster cushion – Detail
- Bracket for fire extinguisher – Detail
- Fire extinguisher (fly away delivery only) – Detail
Instruments
- Airspeed indicator – Detail
- Altimeter – Detail
- Rotor/engine dual tacholmeter – Detail
- Manifold pressure gage – Detail
- Vertical speed indicator – Detail
- Magnetic compass – Detail
- Gage panel (cyl. hd. temp., oil & press. temp., fuel quantity, ammeter) – Detail
- Carburetor air temperature gage – Detail
- Digital OAT gage/voltmeter – Detail
- Hourmeter – Detail
- Quartz clock – Detail
- Garmin GDU 700L TXi PFD/MFD – Detail
- SAS/Autopilot Genesys HeliSAS (requires Aspen PFD Pro) – Detail
- PFD, Aspen Avionics EFD1000H Pilot (with slaved D.G.) – Detail
- PFD, Aspen Avionics EFD1000H Pro with HSI (requires GPS) – Detail
- Synthetic Vision Enablement
- Garmin GI-106B – Detail
- Artificial Horizon, LCD, Kelly Mfg RCA2600-3 with Slip Skid – Detail
- Artificial Horizon, LCD, Kelly Mfg RCA2600-3 with Slip Skid, windshield mount – Detail
- Artificial Horizon, Mid-Continent 4300 with Slip Skid (mechanical gyro) – Detail
- Directional Gyro Mid-Continent 3300 (mechanical gyro) – Detail
- Turn Coordinator (mechanical gyro) – Detail
- Vertical Compass, PAI-700 (replaces standard compass) – Detail
- Digital Chronometer, Davtron 800 (replaces standard clock) – Detail
- Millibar Altimeter (replaces standard in-Hg) – Detail
- Meter Altimeter (replaces standard in-Hg) – Detail
- IVSI – Instantaneous Vertical Speed Indicator (replaces standard VSI) – Detail

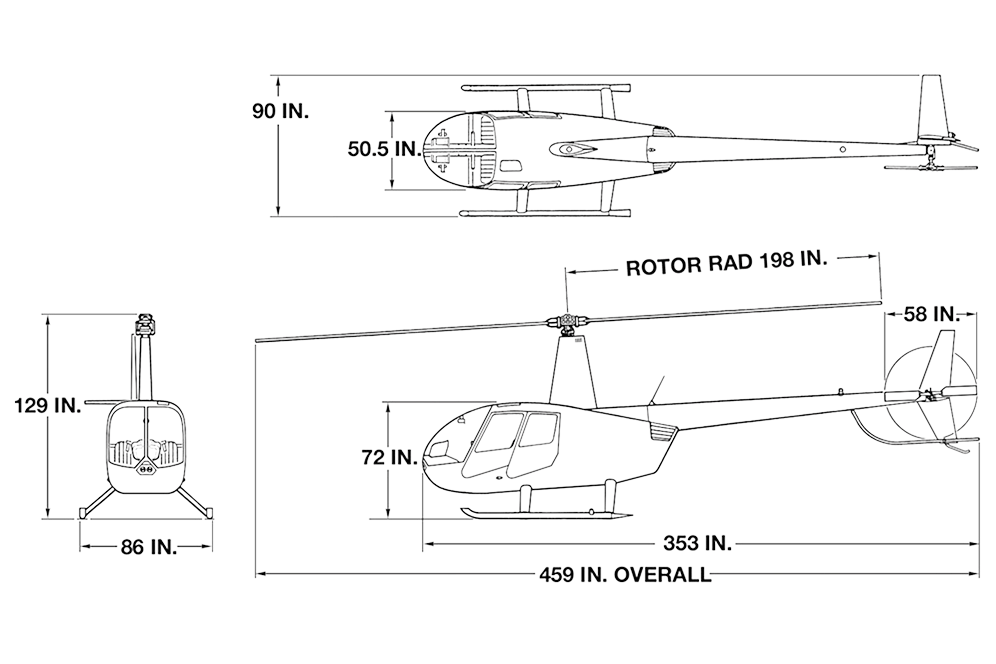

Specifications & Dimensions
| Helicopter | R44 Raven I | Clipper I with fixed floats |
| Engine | Lycoming O-540, six cylinder, carbureted | Lycoming O-540, six cylinder, carbureted |
| Horsepower | Derated to 225 for takeoff and 205 continuous | Derated to 225 for takeoff and 205 continuous |
| Maximum Gross Weight | 2400 lb (1089 kg) | 2400 lb (1089 kg) |
| Approximate Empty Weight (including oil & standard avionics) | 1450 lb (658 kg) | 1500 lb (680 kg) |
| Standard Fuel (29.5 gal) | 177 lb (80 kg) | 177 lb (80 kg) |
| Auxiliary Fuel (17.0 gal) | 102 lb (46 kg) | 102 lb (46 kg) |
| Pilot, Passengers, and Baggage (with standard fuel) | 773 lb (351 kg) | 723 lb (328 kg) |
| Cruise Speed at Maximum Gross Weight | up to 108 kts (200 km/h) | up to 101 kts (187 km/h) |
| Maximum Range (no reserve) | approx 300 nm (550 km) | approx 300 nm (550 km) |
| Hover Ceiling IGE | 6400 ft @ 2400 lb | 6400 ft @ 2400 lb |
| Hover Ceiling OGE | 4000 ft @ 2300 lb | 4000 ft @ 2300 lb |
| Rate of Climb | over 1000 fpm | over 1000 fpm |
| Maximum Operating Altitude | 14,000 ft | 14,000 ft |
| Electrical System | 28 volt | 28 volt |
