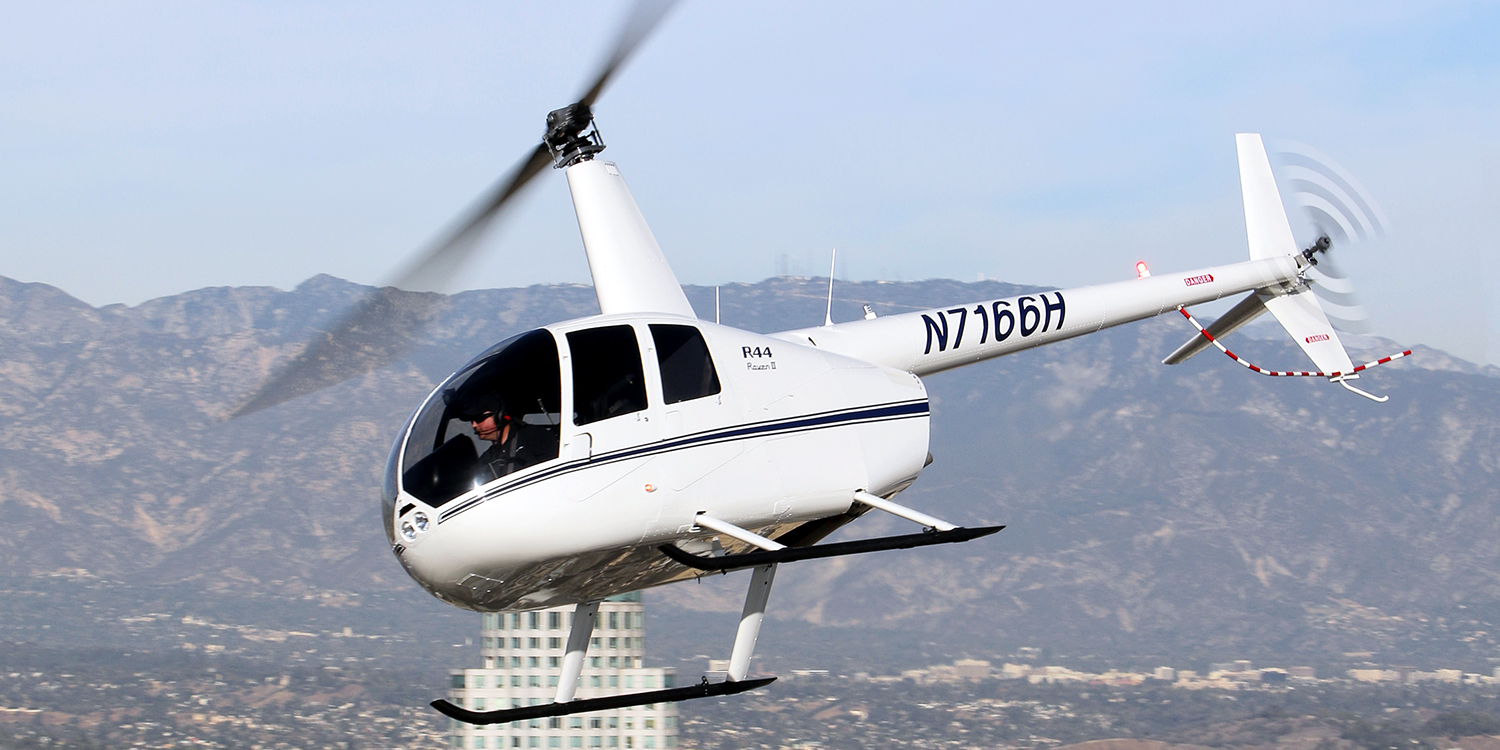

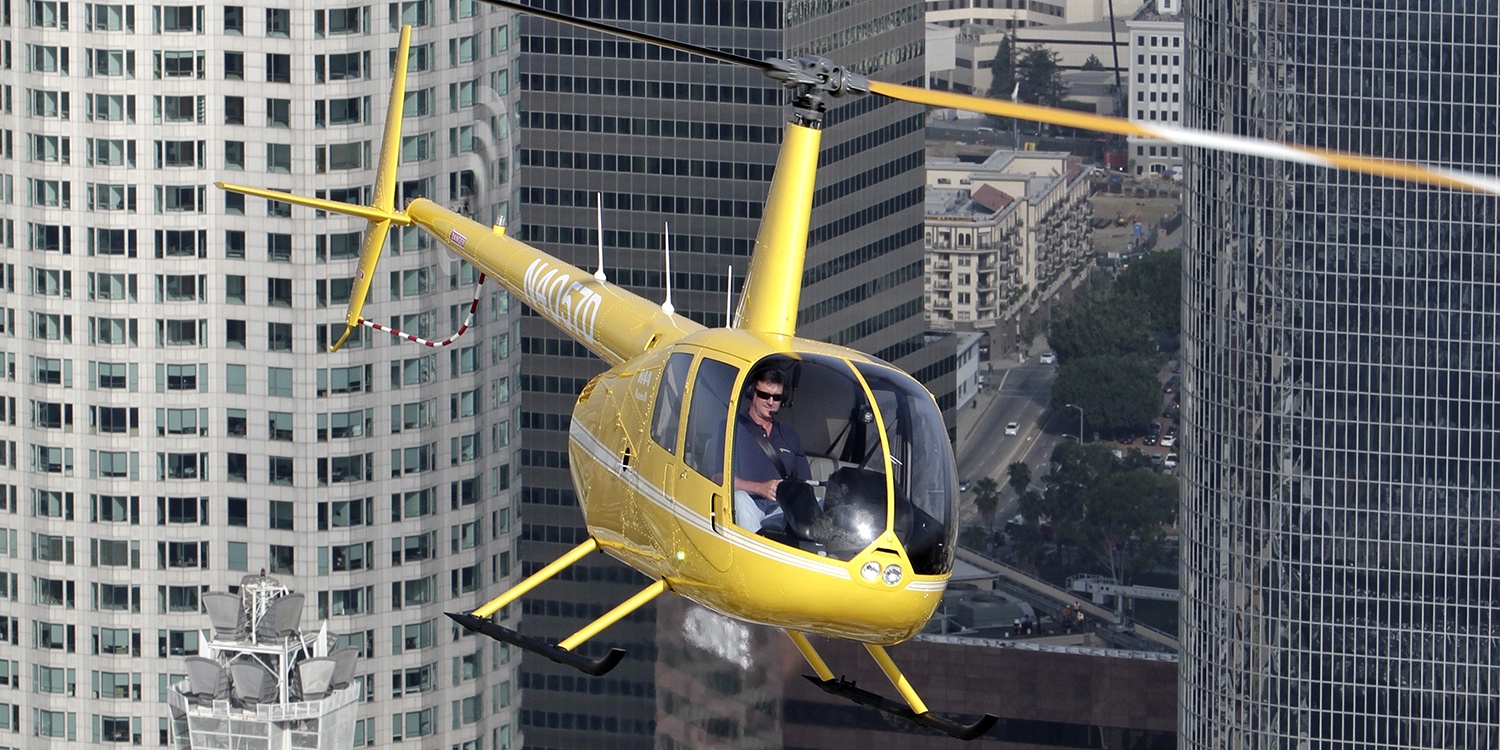

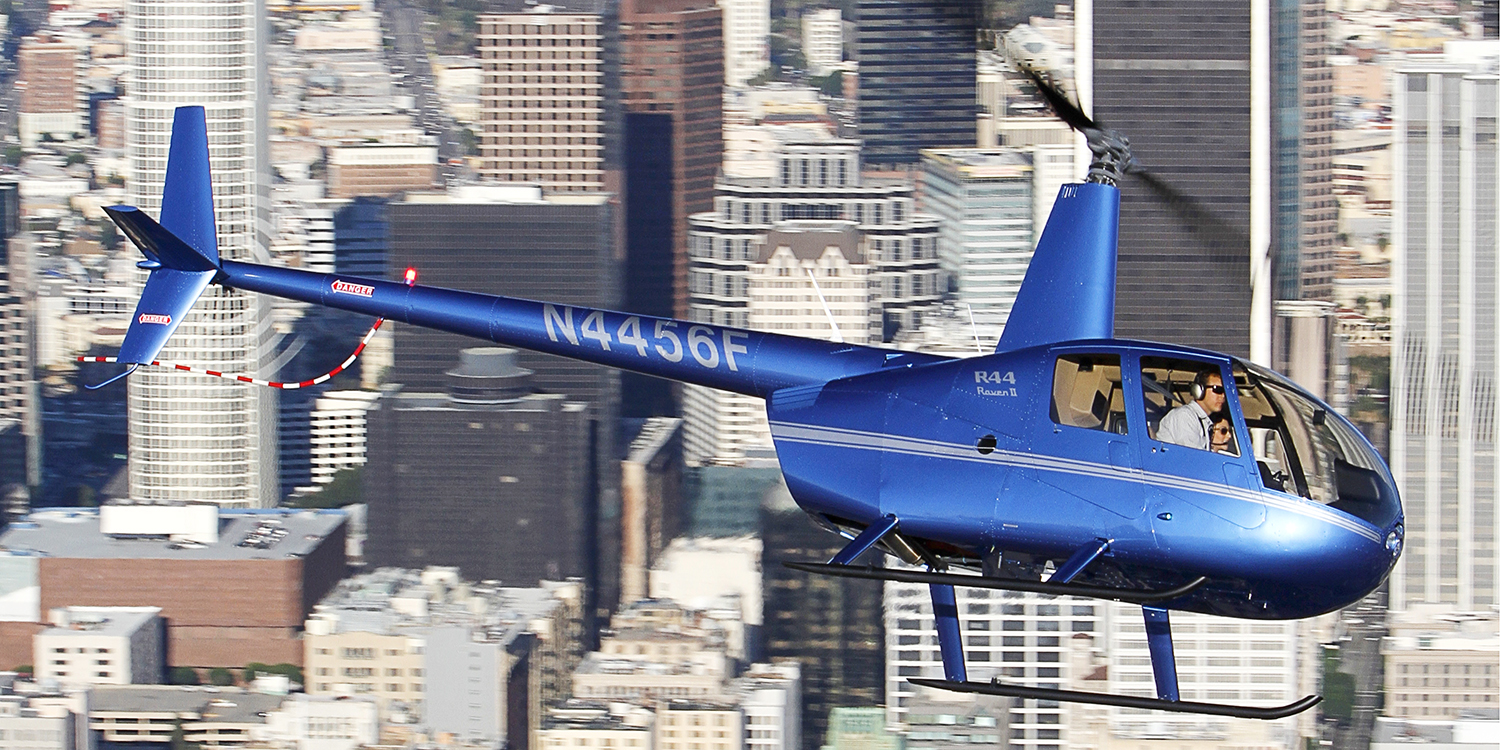

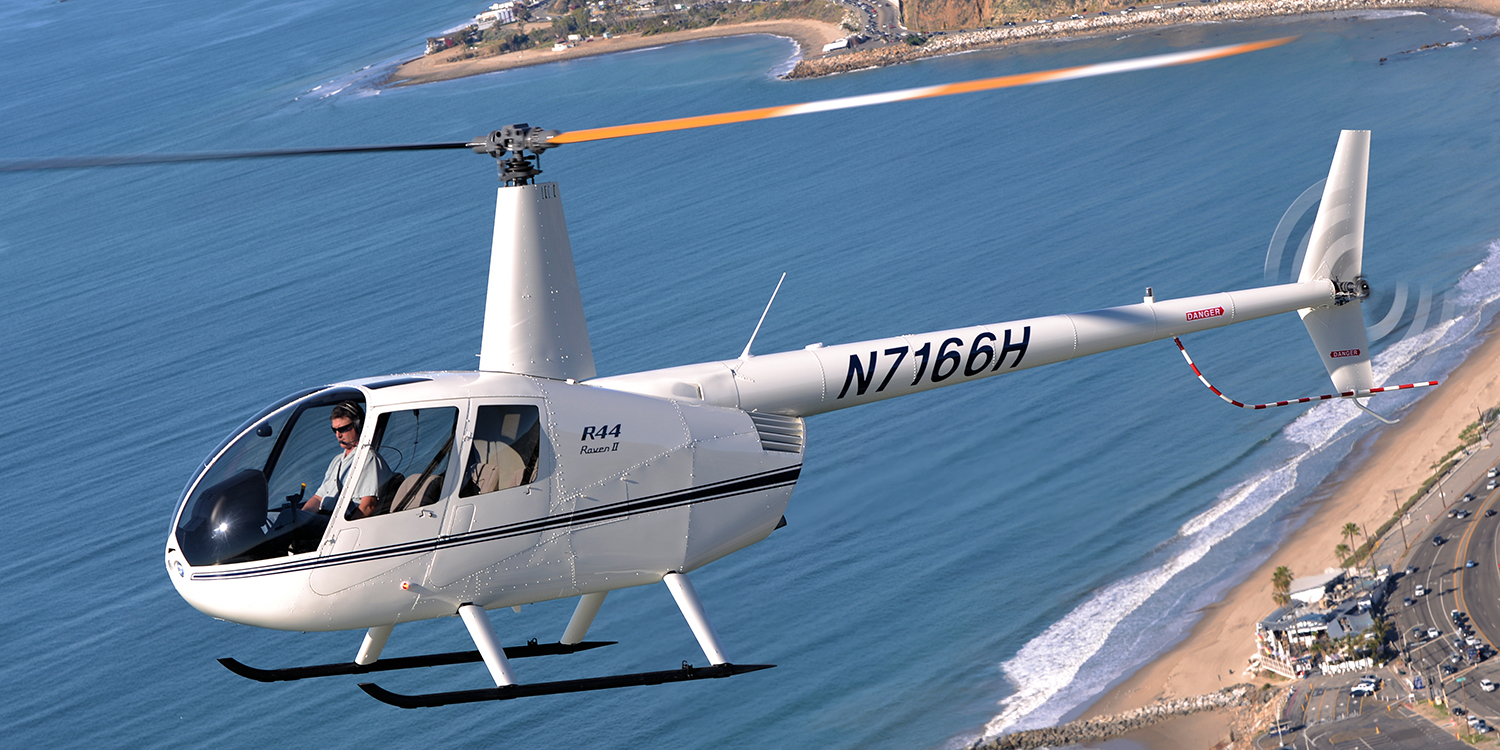

R44 Raven II & Clipper II
Four-seat Robinson R44 Raven II and Clipper II helicopters are high performing, reliable and easy to maintain. R44s have a two-bladed rotor system, T-bar cyclic and the latest in Robinson technology including streamlined instrument panels and crashworthy bladder fuel tanks.
The R44’s aerodynamic fuselage optimizes airspeed and fuel economy. Hydraulic controls eliminate feedback forces and provide responsive handling. A low tail-rotor tip speed, newly designed muffler and large cambered tail reduce flyover noise.
Raven II and Clipper II helicopters are powered by Lycoming’s IO-540 fuel injected engine. The IO-540 delivers better altitude performance, increased payload and eliminates the need for carburetor heat.
Equipment & Accessories
- Hydraulically boosted controls
- Crashworthy fuel system with bladder tanks
- Cabin heater and defogger
- Removable dual controls – Detail
- Rotor brake – Detail
- RPM governor
- Carbon monoxide detector
- Throttle correlator
- Engine overspeed protection during starting
- Electronic Engine Monitoring Unit for maintenance and engine health tracking – Detail
- RHC engine oil filter installation
- Engine oil quick-drain

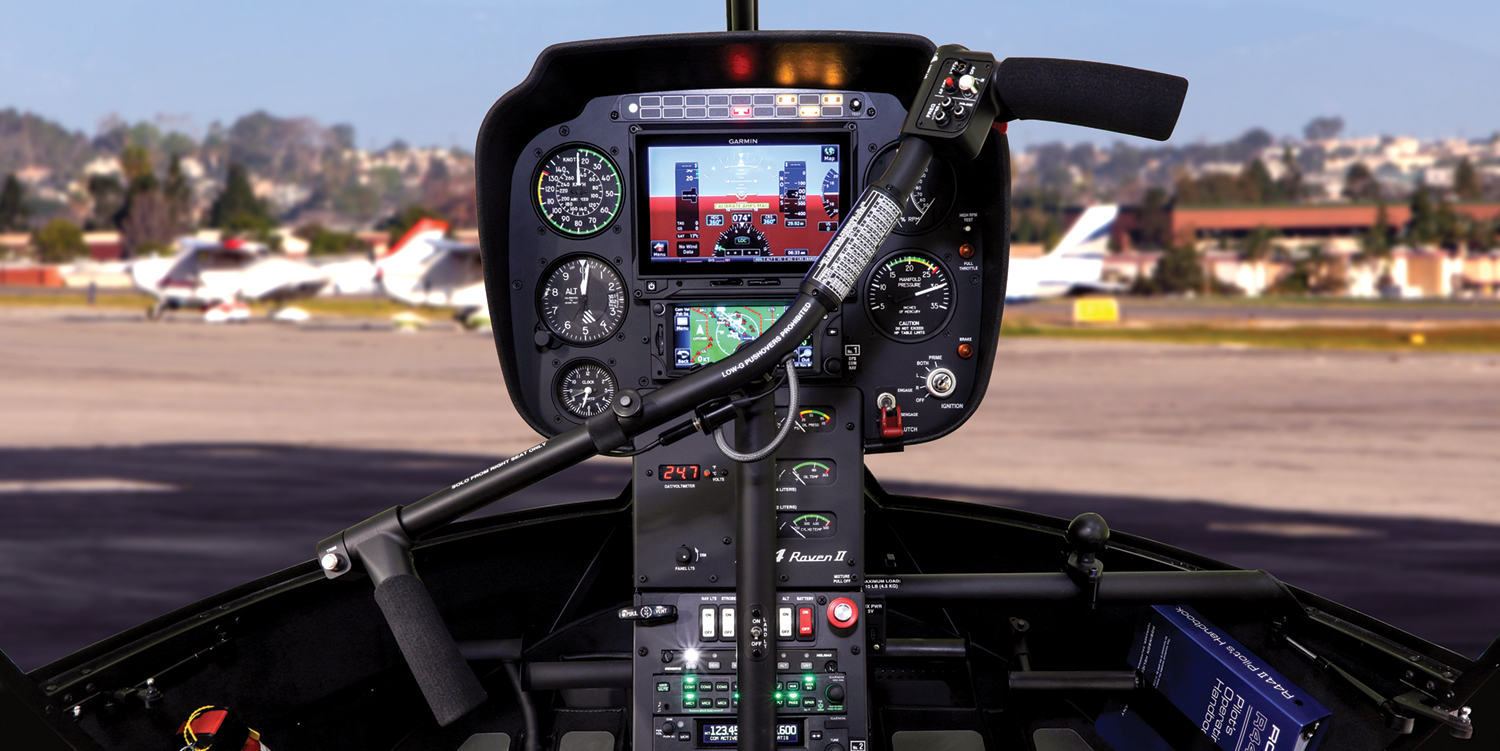

- Eight-hole instrumental panel
- Intercom switches at each seat – Detail
- Avionics master switch – Detail
- Mono and stereo headset jacks (U174 and 6-pin LEMO)
- Fabric velour seats – Detail
- Door opener, gas spring, all four doors
- Tinted windshield and door windows
- Three-point shoulder harnesses – Detail
- Adjustable pedals on pilot’s side
- Carpeting and acoustic interior
- Muffler and soundproofing
- Under-seat storage compartments – Detail
- Door locks
- Hard point on belly
- Annunciator light panel
- Rotor brake engaged light
- Full throttle caution light
- Dual HID landing lights
- Panel, map and courtesy lights
- LED anti-collision and navigation lights
- Tow cart adapter
- Ground handling wheels – Detail
- Windshield cover
- Custom fabric travel bag – Detail
- Rotor blade tie-downs – Details
- Upper sheave – Detail
- Air conditioning – Detail
- Leather seats – Detail
- Observation bubble window (each door)
- Impact-Resistant Windshields – Detail
- Heated pitot tube – Detail
- Metallized upper sheave – Detail
- Extra corrosion protection (included with Clippers)
- Five-point shoulder harness system (front seats) – Detail
- Red LED forward strobe
- White LED forward strobe – Detail
- External power receptacle – Detail
- Second hourmeter, oil-pressure-activated – Detail
- GPS Fleet Tracking Spidertracks S6 – Detail
- David Clark H10-13H (custom cord) – Detail
- Bose A20 headset with Bluetooth – Detail
- 6-pin jack for Bose headset (headset not included) – Detail
- Aft seat dual USB charge ports – Detail
- Accessories support bar with power plug and dual USB ports (pilot side)* – Detail
- Accessories support bar with power plug and dual USB ports (left side)* – Detail
- Garmin Flightstream 510 card (exchange for standard database card)* – Detail
- Copilot extended pedals – Detail
- Leather seat back booster cushion – Detail
- Velour seat back booster cushion – Detail
- Fire extinguisher (fly away delivery only) – Detail
- Bracket for fire extinguisher – Detail
- Forward ground support – Detail
Instruments
- Airspeed indicator – Detail
- Altimeter – Detail
- Rotor/engine dual tachometer – Detail
- Manifold pressure gage – Detail
- Vertical speed indicator – Detail
- Magnetic compass – Detail
- Gage pane (cylinder head temp., oil temp & pressure, fuel quantity, ammeter) – Detail
- AmmeterDigital OAT gage/voltmeter- Detail
- Hourmeter – Detail
- Quartz clock – Detail
- Garmin GDU 700L TXI PFD/MFD – Detail
- Garmin GDU 1060 TXI PFD/MFD – Detail
- Helicopter Synthetic Vision Technology Card – Detail
- Chart View Enablement Cards (G500H and GTN650/750) – Detail
- Metric PFD Enablement
- SAS/Autopilot Genesys HeliSAS requires Garmin GDU or Aspen PFD – Detail
- PFD, Aspen Avionics EFD1000H Pilot (with slaved D.G.) – Detail
- PFD, Aspen Avionics EFD1000H Pro with HSI (requires GPS) – Detail
- Garmin GI-106B – Detail
- Artificial Horizon, LCD, Kelly Mfg RCA2600-3 with Slip Skid – Detail
- Artificial Horizon, LCD, Kelly Mfg RCA2600-3 with Slip Skid, windshield mount – Detail
- Artificial Horizon, Mid-Continent 4300 with Slip Skid (mechanical gyro) – Detail
- Directional Gyro, Mid-Continent 3300 (mechanical gyro) – Detail
- Turn Coordinator (mechanical gyro) – Detail
- Vertical Compass, PAI-700 (replaces standard compass) – Detail
- Digital Chronometer, Davtron 800 (replaces standard clock) – Detail
- Millibar Altimeter (replaces standard in-Hg) – Detail
- Meter Altimeter (replaces standard in-Hg) – Detail
- IVSI- Instantaneous Vertical Speed Indicator (replaces standard VSI) – Detail

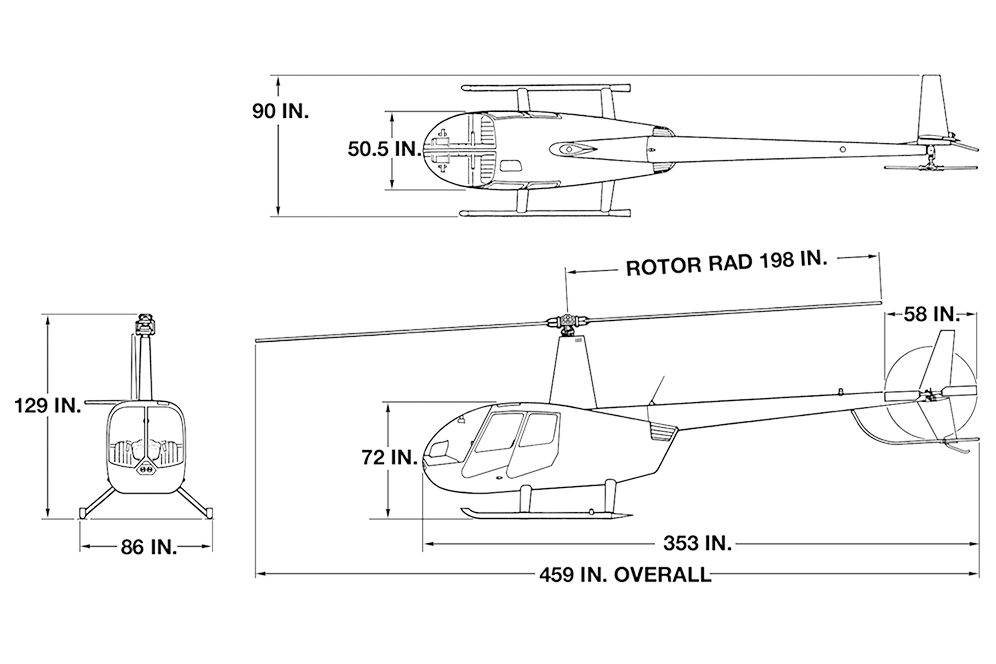

Specifications & Dimensions
| Helicopter | R44 Raven II | R44 Clipper II with Pop-out Floats |
| Engine | Lycoming IO-540, six cylinder, fuel injected | Lycoming IO-54O, six cylinder, fuel injected |
| Horsepower | Derated to 245 for takeoff and 205 continuous | Derated to 245 for takeoff and 205 continuous |
| Maximum Gross Weight | 2500 lb (1134 kg) | 2500 lb (1134 kg) |
| Approximate Empty Weight (including oil & standard avionics) | 1505 lb (683 kg) | 1570 lb (712 kg) |
| Standard Fuel (29.5 gal) | 177 lb (80 kg) | 177 lb (80 kg) |
| Auxiliary Fuel (17.0 gal) | 102 lb (46 kg) | 102 lb (46 kg) |
| Pilot, Passengers, and Baggage (with standard fuel) | 818 lb (371 kg) | 753 lb (342 kg) |
| Cruise Speed at Maximum Gross Weight | up to 109 kts (202 km/h) | up to 106 kts (196 km/h) |
| Maximum Range (no reserve) | approx 300 nm (550 km) | approx 300 nm (550 km) |
| Hover Ceiling IGE | 8950 ft @ 2500 lb | 8950 ft @ 2500 lb |
| Hover Ceiling OGE | 7500 ft @ 2300 lb | 7500 ft @ 2300 lb |
| Rate of Climb | over 1000 fpm | over 1000 fpm |
| Maximum Operating Altitude | 14,000 ft | 14,000 ft |
| Electrical System | 28 volt | 28 volt |
